760g Series Woven Filter Cloth
These are 760g series woven filter cloth products.

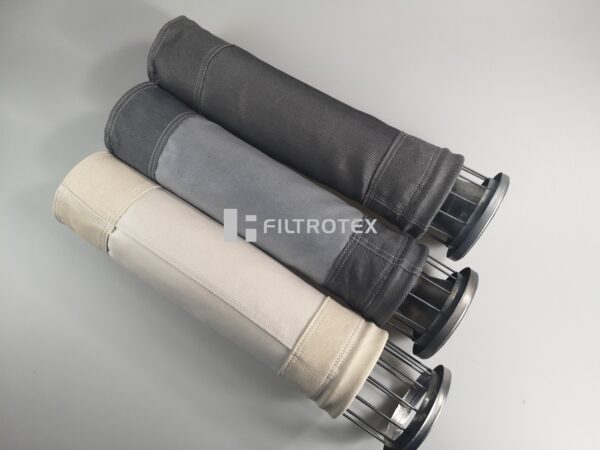

Our fiberglass filter cloth is widely used because of its high covering capacity , good air permeability and high filtration efficiency. Woven fiberglass is great fabric for RABH filter bag, heat-resistance.
What’s more, Our factory is equipped with 10 sets of Dornier rapier looms and 58 sets of Toyota air-jet looms to ensure stable capacity and quality. The capacity is 30,000㎡glass cloth per day.
With high efficiency and good stability, the speed can reach 800-1000 RPM. They are used for producing fabric from 20 to 800g/㎡. The management team with a configuration of imported well-proven weaving equipment facilitates weaving varieties of textured fiberglass cloth up to advanced level of international quality.
- Description
Description
ES-FB760W-TFI
Technical Specification Sheet
| Product Name | Fiberglass woven cloth 760 gsm | |
| Product Code | ES-FB760W-TFI | |
| Physical properties | ||
| Weave method | Double Twill | |
| Thickness | 0.75±0.08 | |
| Weight | g/m² | 760±10 |
| Width | m | ≤2.20M |
| Loss on Ignition (%) | ≥10 | |
| Chemical Finish | Teflon, PTFE membrane finish | |
| Air Permeability (L/m².S@200Pa) | 310±25 | |
| Density (ROOT/INCH) |
Warp | 46±2 |
| Weft | 39±2 | |
| Tensile Strength (N/25mm) |
Warp | ≥2200 |
| Weft | ≥2000 | |
| Temperature | ||
| Continues temperature | C° | 260 |
| Instant temperature | C° | 280 |
ES-FB760W-TFM
Technical Specification Sheet
| Product Name | Fiberglass woven cloth 760 gsm with PTFE membrane | |
| Product Code | ES-FB760W-TFM | |
| Physical properties | ||
| Weave method | Double Twill | |
| Thickness | 0.75±0.08 | |
| Weight | g/m² | 760±10 |
| Width | m | ≤2.20M |
| Loss on Ignition (%) | ≥10 | |
| Chemical Finish | Teflon, PTFE Lamination | |
| Air Permeability (L/m².S@200Pa) | 50±15 | |
| Density (ROOT/INCH) |
Warp | 46±2 |
| Weft | 39±2 | |
| Tensile Strength (N/25mm) |
Warp | ≥2200 |
| Weft | ≥2000 | |
| Temperature | ||
| Continues temperature | C° | 260 |
| Instant temperature | C° | 280 |
The above mentioned data have been determined according to the averages obtained from a series of typical results by our lab and are intended just for reference. The technical information is subject to changes, usual tolerances apply.
