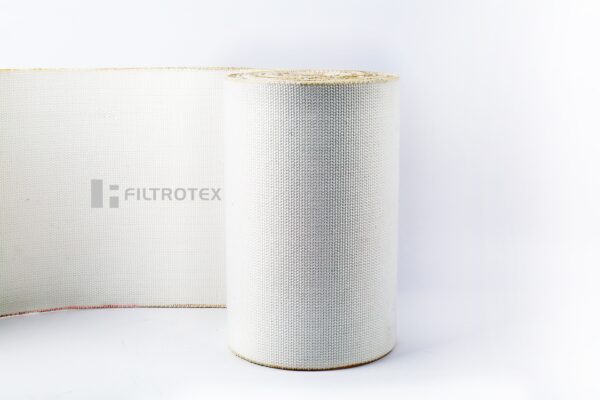

Fluidization Cloth
Fluidizing cloth also can be called fluidizing fabric. The main use is discharging, declining transportation or homogenizing the powder or small granular material in quiescent condition. We adopt 100% polyester yarns for fluidization cloth material.
Our capacity: 2000 m2 per Day.
The max. length per roll: 50 M.
Width: 0.10 M ~ 2.6 M.
Thickness: 4~10 MM.
Max. Operating Temp.: 160 ℃.
Ultimate Temp.( Instant ): 200 ℃.
Can be customized by specific demands.
- Description
Description
There are two kinds of Fluidization Cloth:
| Filament Polyester Fluidization Cloth | Spun Polyester Fluidization Cloth |
 |
 |
Our company’s spun polyester Fluidization Cloth has advantages on the performances of tensile strength, air permeability, and high temperature resistance. But filament polyester Fluidization Cloth is superior to spun polyester Fluidization Cloth on the above performances. Fluidization Cloth is also named as Air slide fabric, Air Permeable Fabric, Air slide cloth, Air Slide Membrane, Air Slide Canvas, Canvas Cloth, and fluidizing fabric, etc. We are also, however, able to weave fabrics to our customers’ specific demands for air permeability and mechanical strength.
Technical parameter of Fluidization Cloth:
| Product Name | Fluidization Cloth | |
| Thickness( mm ) | 4 ~ 10 | |
| Gram Weight( gsm ) | 3200 ;5600 | |
| Air permeability( L/m2.s ) | 65 ~ 100 | |
| Elongation (Strength: 2000 N / 2 cm ) | Warp | 1.4 ~ 2.5 % |
| Weft | 0.65 ~ 1.2 % | |
| Max. Operating Temp. | 160 ℃ ( 320 ℉) | |
| Ultimate Temp.( Instant ) | 200 ℃ ( 392 ℉) | |
| Number of plies | 5 | |
Ps: Average errors of thickness is +/- 0.3mm , gram weight is +/- 5%, air permeability is +/- 10%
Applications of Fluidization Cloth:
Cement industry: cement bulk cement trucks,boats;
Mining: alumina,lime,fly ash,phosphate;
Chemical industry: soda;
Power: fly ash,desulfurization;
Food industry: flour.
