Fiberglass Woven Cloth With Finished Fabric
Filmedia® Everspring is specializing in filtration solutions, this coated fiberglass woven cloth is our new developed products. It is high temperature resistance and anti- acid.
1. Our Capacity: 20000 m² per day.
2. The fabric will be produced by your requirements.
3. Weight: 100-1200 gsm.
4. Thickness: 0.5mm – 20mm.
5. We provide free sample for you for testing.
Optional Choice: Pleated Filter Bag (Star Bag)
The main advantages and features:
- It is not necessary to reconstruct the box and increase the filter area of the system by 50-150% as needed;
- The effective bag spacing is greatly increased, and the cleaning efficiency is greatly improved;
- Extended bag life
- Description
Description
Introduction:
Fiberglass filter material is coated on the surface through a special process recipe treated glass fiber fabric composite microporous expanded PTFE film made, which focused on the high-strength glass fiber and low elongation , high temperature resistance, smooth surface corrosion, etc. And PTFE films , water-repellent , breathable, good chemical stability and good characteristics.
Specifications:
| Types | Finish | Loss on Lgnition | Weight | Thread Count | Tensile Strength | Air Permeability | ||
| min | (g/m2) | p/inch | Kg/inch | (cfm) | ||||
| Warp | Fill | Warp | Fill | |||||
| ES800 | P(PTFE) | 10 | 805 | 48 | 40 | >220 | >220 | 25-55 |
| ES500 | P(PTFE) | 10 | 510 | 48 | 24 | >220 | >110 | 30-65 |
| ES450 | P(PTFE) | 10 | 475 | 44 | 24 | >200 | >110 | 30-65 |
| ES380 | P(PTFE) | 10 | 345 | 54 | 30 | >120 | >100 | 30-65 |
| ES900 | B(Triple) | 1.8 | 850 | 48 | 48 | >250 | >250 | 20-40 |
| ES800 | B(Triple) | 1.8 | 740 | 48 | 40 | >150 | >100 | 25-55 |
| ES500 | B(Triple) | 1.8 | 470 | 48 | 24 | >180 | >80 | 30-65 |
| ES450 | B(Triple) | 1.8 | 435 | 44 | 24 | >180 | >90 | 40-75 |
| ES380 | B(Triple) | 1.8 | 320 | 54 | 30 | >110 | >60 | 30-70 |
| ES800 | AR(Acid Resistance) | 4 | 760 | 48 | 40 | >220 | >200 | 25-55 |
| ES450 | AR(Acid Resistance) | 4 | 450 | 44 | 24 | >180 | >90 | 40-75 |
| ES380 | AR(Acid Resistance) | 4 | 325 | 54 | 30 | >115 | >70 | 30-65 |
Features:
- High temperature
Due to the stability of fiberglass materials , fiberglass filter bag can be used continuously at 260 ℃ mining
- Resistance to corrosion
Glass fiber filter can be used normally ( except hydrofluoric acid and concentrated phosphoric acid ) in acidic and alkaline mining in
- Water Solutions
Glass fiber filter has a strong hydrolysis resistance , can be used normally at a relative humidity of 95% mining
- The high strength
In the absence of fiberglass woven through the fabric of the destruction of the needling process , the strength is much higher than the fiber filter media and composite
- Antioxidant
PPS filter compared to the situation in the coal-fired boiler precipitator easily oxidized , glass fiber material with strong antioxidant properties
- The cleaning effect is significant
Glass fiber membrane filter media has a good waterproof , anti- oil properties , the relative humidity near saturation can easily shake off the dust
- Dimensionally stable
Glass fiber membrane filter media for high temperature dust filtration , but not because of high temperature deformation , elongation ≤2%
- High efficiency
Using PTFE coated glass fiber filter, since the pore size of the film is extremely small, collection efficiency up to 99.999%
- Long life
Retroperitoneal fiberglass filter , reducing the accumulation of surface dust and prolong the service life
- Cost-effective
Superior performance glass fiber filter , glass fiber filter materials are cheap relative to other prices
Test:

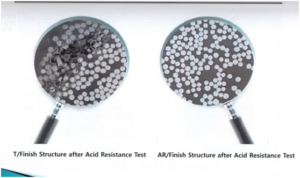

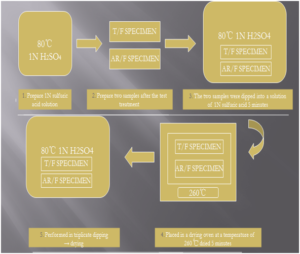

1.Acid Test Method
2.Tear Strength Test
3.Microscope Blow up Strength
Application:
Fiberglass coated fiberglass filter media as an upgrade replacement products, almost ordinary glass fiber filter can be applied to the case , replace glass fiber membrane filter media can be applied. The following is advice for how to choose filter media, if you are interested, please click here.
