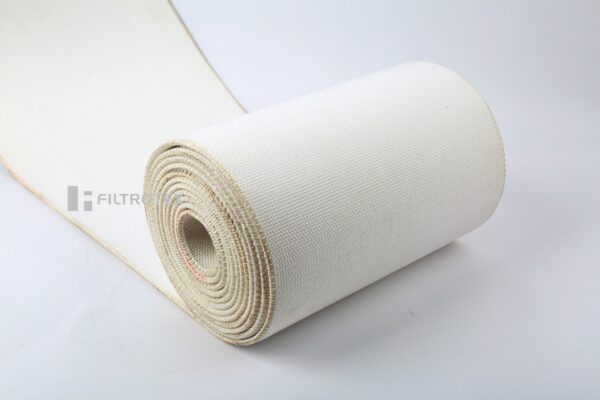

Air Slide Fabric, Air Slide Belt
Filmedia® supply air slide fabrics of first grade quality and competitive price using the most advanced technology. Our Air slide Fabric has great performances of tensile strength, air permeability, service life, and heat-resistance. Air Filter Media also named Air slide Fabric is the ideal fluidizing fabric for work processes at high temperature,which mainly used for pneumatic transmission of cement, bauxite, carbon black, gypsum, flour, etc. Air slide belt also cab be called Air Permeable Fabric, Air slide cloth, Air Slide Membrane, Air Slide Canvas, Canvas Cloth, and fluidizing fabric, etc.
Our capacity: 2000 m² a day.
Thickness: 4mm-10mm and other customized thickness.
Width: can be customized.
Heat resistance: 160 ℃ ~ 200 ℃.
We also accept customization.
- Description
Description
Air Filter Media(Air slide Fabric) available in three varieties having thickness ranging from 4 mm to 10 mm & customized width suitable for your requirement.
Technical parameters of Spun polyester air slide fabric:
| Product name | Spun polyester air slide | |
| Weight | 4000gsm+/- 5% | |
| Thickness | 6mm+/-0.3mm | |
| Air permeability | 85 L/m2.s+/- 10% | |
| Elongation (Strength:2000N/2cm ) | Warp | 2.1% |
| Weft | 1.0% | |
| Working temperature | 160℃ | |
| Number of plies | 5 | |
Technical parameters of Filament polyester air slide fabric:
| Product name | Filament polyester air slide | |
| Weight | 4500 gsm+/- 5% | |
| Thickness | 6mm+/-0.3mm | |
| Air permeability | 90 L/m2.s+/- 10% | |
| Elongation (Strength:2000N/2cm ) | Warp | 1.9% |
| Weft | 0.9% | |
| Working temperature | 160℃ | |
| Number of plies | 5 | |
Benefits of Air filter media(Air slide fabric)
- Uniform high quality raw synthetic materials used in weaving process.
• Full synthetic smooth fibers- 100% Polyester multi-filament fabric.
• Smooth weave and even pores
• High tension weaving
• Robust & stable weave
• High weight per M² Air slide fabric is made of polyester filament or polyester spun filament, they are mainly used in air transport flume of cement, alumina, etc, as well as used in other conveying appliance for some other dry particles, such as Bulk haulers, Barges, etc, which with a perfect fluid, will improve the convey efficiency, they can uniform the raw material if they are used in raw material Blending Bed Equipment.
